Product Features

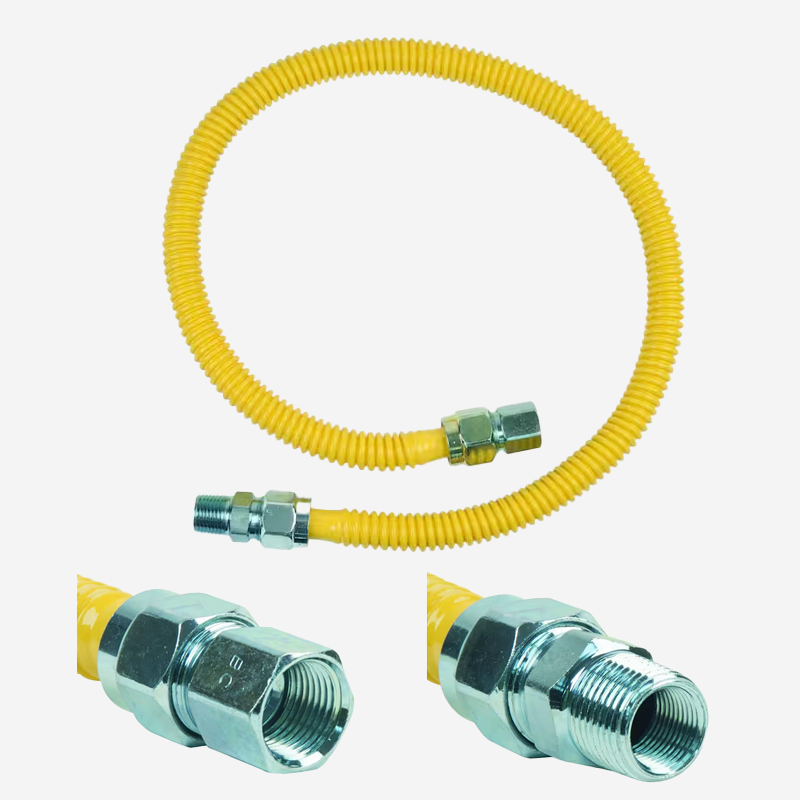

• Flexible stainless steel corrugated tubing with corrosion-resistant coating
• ProCoat protective coating resistant to grease, moisture, cleaning agents, UV rays, and salt
• Steel fittings included with each connector
• 100% leak tested for safety assurance
• Approved for indoor and outdoor use
• Compatible with natural gas and LP (propane)
• Easy to install with flexible design
• Built to withstand demanding kitchen environments
• Models: GCGASHOSE72 / GCGASHOSE36 / GCGASHOSE48

Usage Recommendations

• Designed for: High-performance kitchens in restaurants and hotels, food trailers, and mobile kitchen installations.
• Applications: Connection of fryers, stoves, grills, water heaters, and other gas appliances in residential or light commercial kitchens.
• Installation: Flexible design allows for easy routing and connection where rigid pipes are impractical.

Maintenance

• Regular Inspection: Check connections periodically for signs of wear or damage.
• Leak Testing: Perform soap bubble test on all connections after installation and during routine maintenance.
• Protective Coating: The ProCoat finish requires no special maintenance but should be kept free from excessive buildup of grease or debris.
• Replacement: Replace connector if coating is compromised, fittings are damaged, or any leaks are detected.

Description

• Category: Gas Vent Pipe and Fittings / Gas Appliance Connectors
• Usage: Flexible gas connectors for safe appliance connections in residential, light commercial, and mobile kitchen applications.

Capacity & BTU Ratings

• GCGASHOSE72: 3/8 in. O.D. (1/4 in. I.D.) | 23,100 BTU capacity

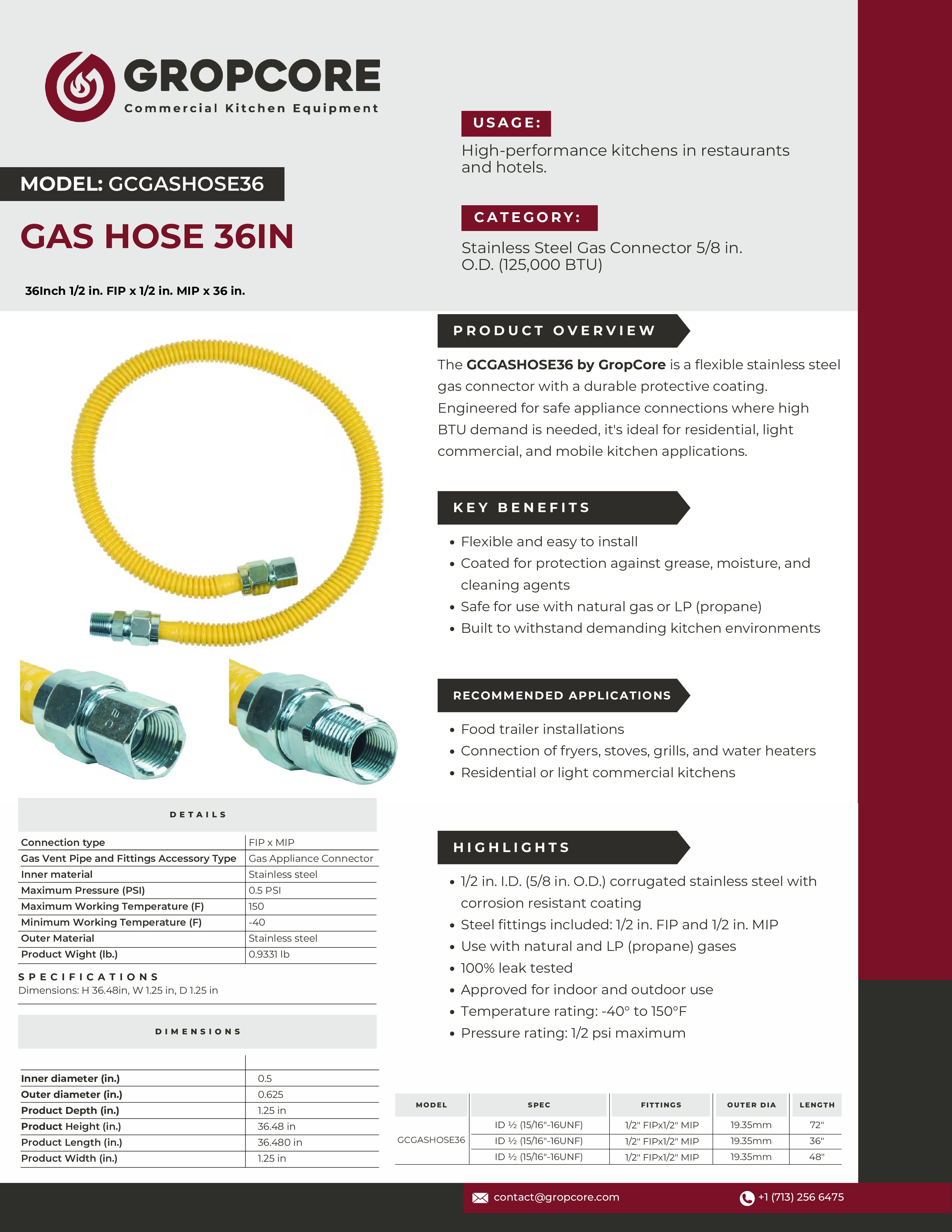

• GCGASHOSE36: 5/8 in. O.D. (1/2 in. I.D.) | 125,000 BTU capacity

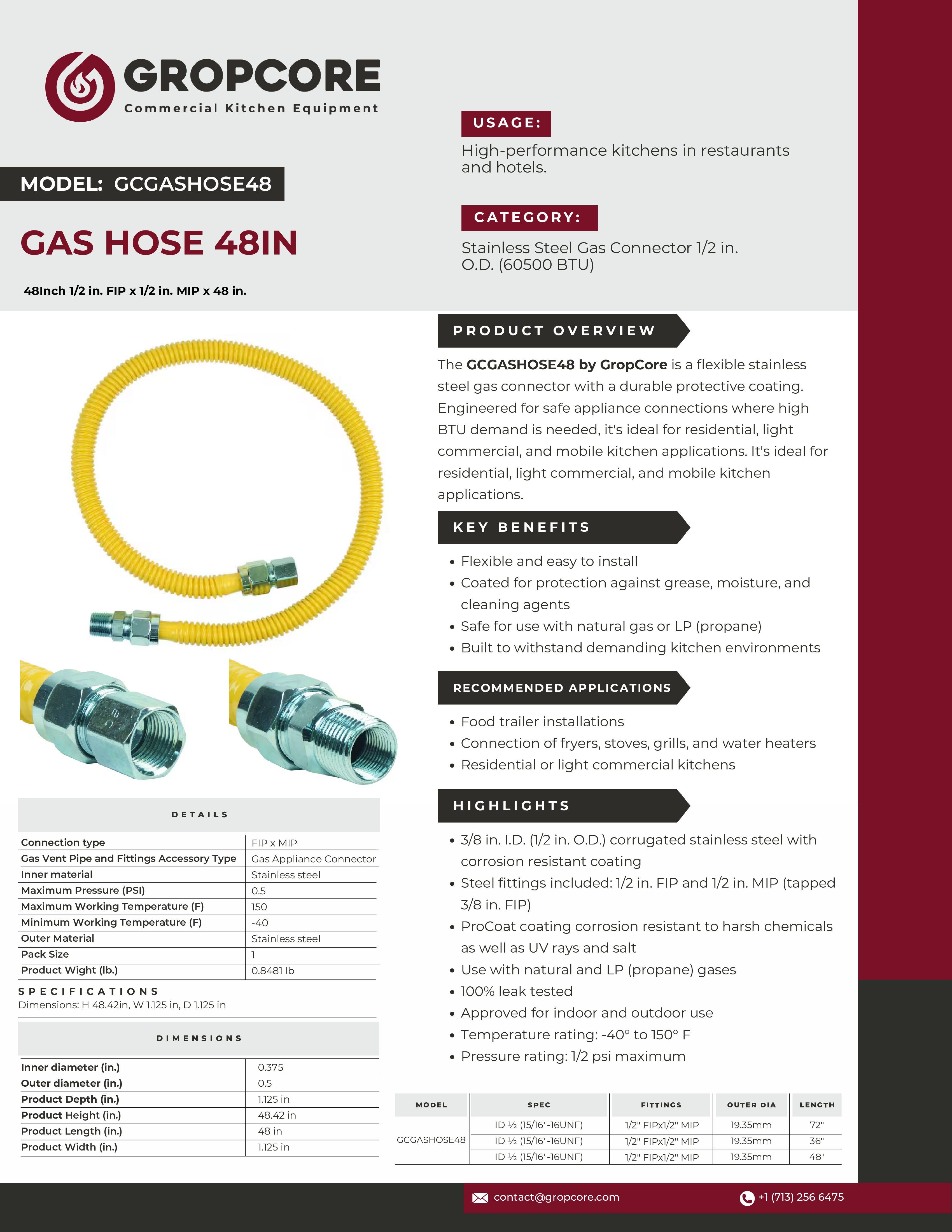

• GCGASHOSE48: 1/2 in. O.D. (3/8 in. I.D.) | 60,500 BTU capacity

Technical Specifications

• GCGASHOSE72: 72 inches length | 1/2 in. MIP (tapped 3/8 in. FIP) x 3/8 in. FIP fittings | 0.375 in. O.D. | 0.8481 lbs
• GCGASHOSE36: 36 inches length | 1/2 in. FIP x 1/2 in. MIP fittings | 0.625 in. O.D. | 0.9331 lbs
• GCGASHOSE48: 48 inches length | 1/2 in. FIP x 1/2 in. MIP (tapped 3/8 in. FIP) fittings | 0.5 in. O.D. | 0.8481 lbs
• Maximum Pressure: 0.5 PSI
• Temperature Rating: -40°F to 150°F
• Material: Corrugated stainless steel with ProCoat corrosion-resistant coating
• Connection Type: FIP x MIP (Female Iron Pipe x Male Iron Pipe)
• Returnable: 90-Day (GCGASHOSE72 only, others not specified)
