Product Features

• Heavy-duty stainless steel construction for durability
• Self-contained refrigeration system with efficient cooling
• Solid doors with anti-condensation heaters
• Digital thermostat with factory preset temperature range
• Interior shelves with rear turn-up to allow proper airflow
• Casters for easy mobility (front wheels lockable)
• Environmentally friendly refrigerant system
• Models: GCHC-19R / GCHC-35R / GCHC-19F

Usage Recommendations

• Designed for: Commercial kitchens, restaurants, and hotels requiring professional food refrigeration or freezing.
• Location: Indoor use only. Place at least 2” away from walls and allow 12” clearance above for ventilation.
• Leveling: Ensure unit is level for proper door alignment and drainage. Lock casters once in place.

Maintenance

• Daily Cleaning: Clean interior and exterior with warm soapy water. Avoid abrasive or chlorine-based cleaners.
• Condenser Coil: Clean every 90 days (or every 30 in heavy grease/dust conditions) with brush, vacuum, or compressed air.
• Gasket Care: Wash gaskets with warm soapy water regularly to prevent mold and maintain elasticity.
• General Care: Tighten hinges if doors sag. Ensure drain lines are free of obstructions to prevent overflow.

Description

• Category: Refrigeration Equipment
• Usage: Reach-in refrigerators and freezers for reliable food storage in commercial kitchens.

Capacity

• GCHC-19R (Refrigerator): 18 cu. ft. | 13 sq. ft. shelving

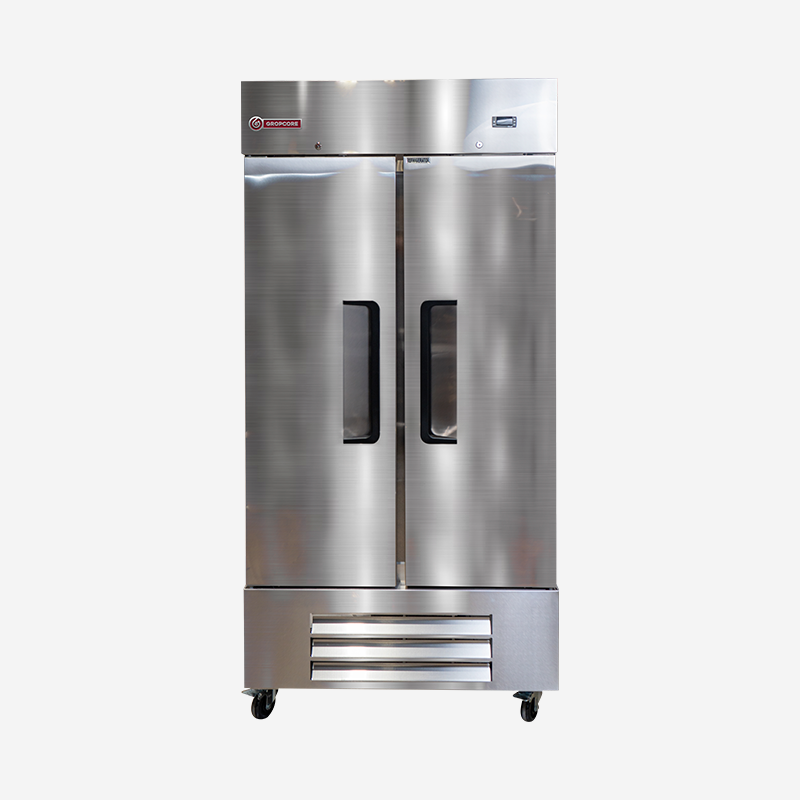

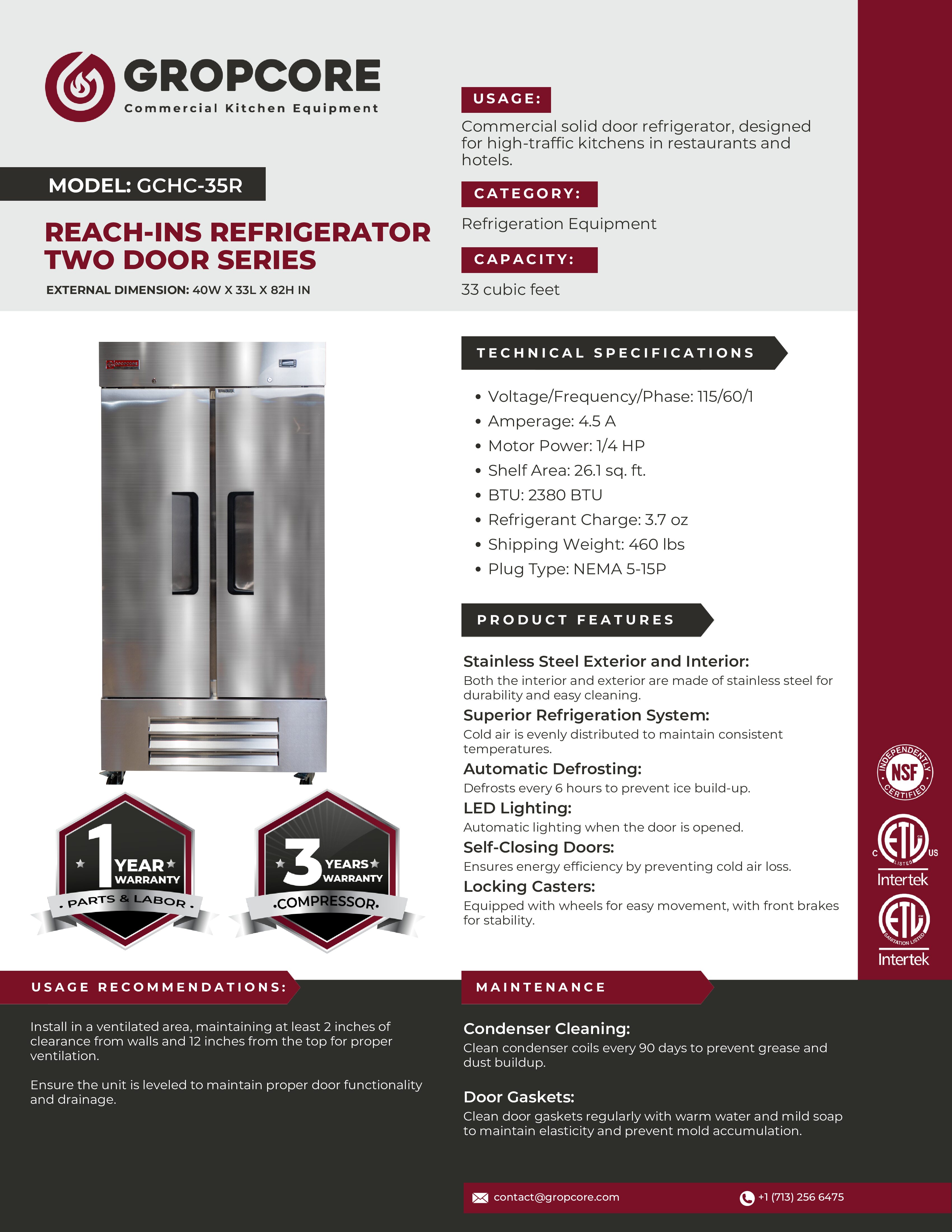

• GCHC-35R (Refrigerator): 33 cu. ft. | 26.1 sq. ft. shelving
• GCHC-19F (Freezer): 18 cu. ft. | 13 sq. ft. shelving

Technical Specifications

• GCHC-19R: 115V/60Hz/1Ph | 3 Amps | 1/5 HP | 1670 BTU | Refrigerant: 2.82 oz | Ship Weight: 220 lbs | NEMA 5-15P
• GCHC-35R: 115V/60Hz/1Ph | 4.5 Amps | 1/4 HP | 2380 BTU | Refrigerant: 3.7 oz | Ship Weight: 460 lbs | NEMA 5-15P
• GCHC-19F: 115V/60Hz/1Ph | 5 Amps | 1/2 HP | 2000 BTU | Refrigerant: 3.53 oz | Ship Weight: 225 lbs | NEMA 5-15P
• Temperature Range (Refrigerators): 34°F – 38°F
• Temperature Range (Freezers): -7°F to -3°F
• Defrost Cycle: Automatic every 6 hours
