Product Features

• Heavy-duty stainless steel construction for durability and hygiene
• Self-contained refrigeration system with efficient cooling
• Solid doors with anti-condensation heating elements
• Factory preset temperature controls with digital thermostat
• Casters included for mobility (front wheels lockable)
• Interior shelves with rear turn-up for proper airflow
• Environmentally friendly refrigerant system
• Models: GCHC-19R / GCHC-35R / GCHC-19F

Usage Recommendations

• Designed for: Commercial kitchens, restaurants, and hotels requiring reliable refrigeration or freezing.
• Location: Indoor use only. Place at least 2” from walls and provide 12” clearance above for ventilation.
• Operation: Do not overload cabinet; allow proper airflow to prevent coil freeze-ups.

Maintenance

• Cleaning: Wipe interior and exterior with soap and warm water. Avoid abrasive or acid-based cleaners.
• Condenser Coil: Clean every 90 days (every 30 if heavy grease/dust present). Use brush, vacuum, or compressed air.
• Gaskets: Clean regularly with warm soapy water to maintain elasticity and sealing performance.
• Doors/Hinges: Tighten screws periodically to prevent sagging or misalignment.

Description

• Category: Refrigeration Equipment
• Usage: Reach-in refrigerators and freezers designed for commercial food storage.

Capacity

• GCHC-19R (Refrigerator): 18 cu. ft. | 13 sq. ft. shelving area
• GCHC-35R (Refrigerator): 33 cu. ft. | 26.1 sq. ft. shelving area

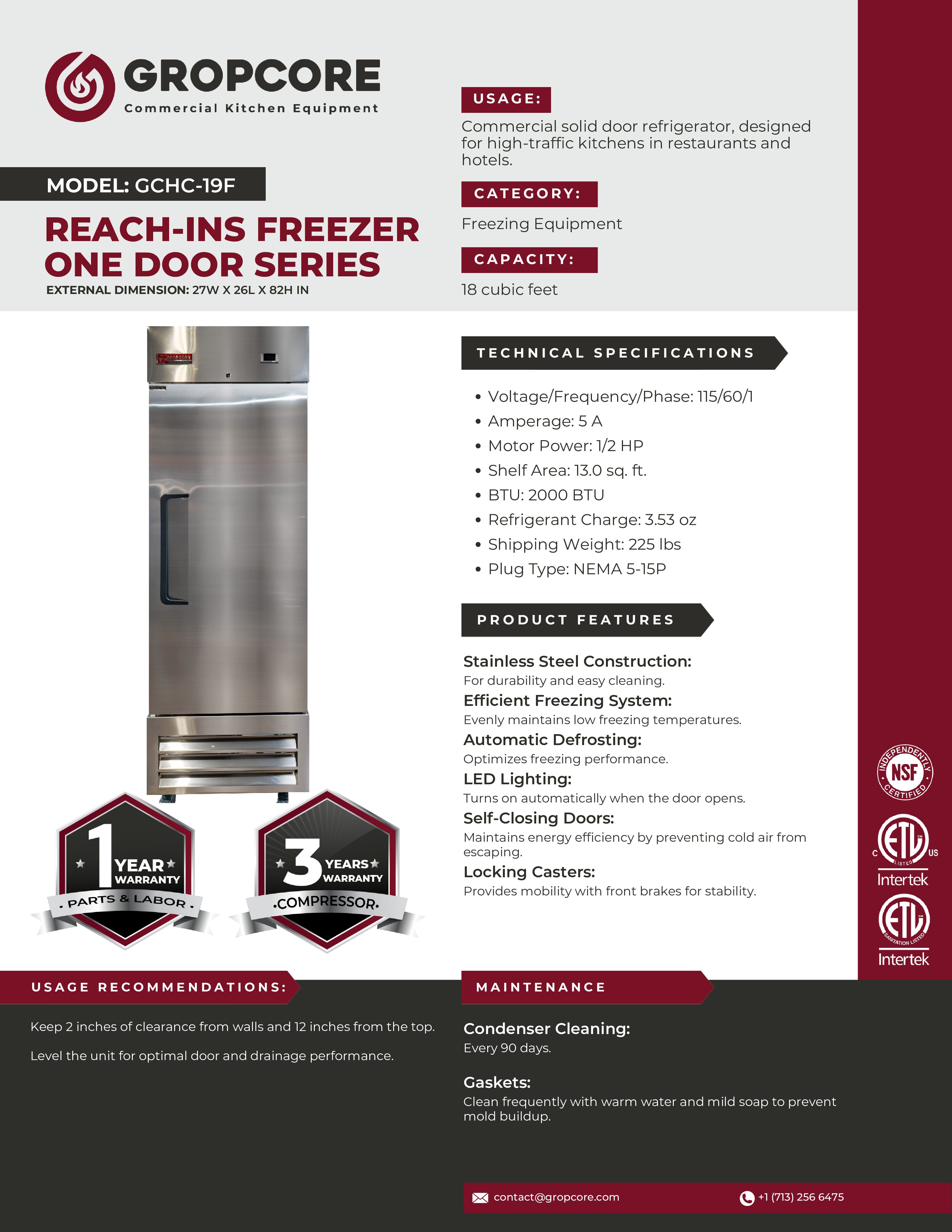

• GCHC-19F (Freezer): 18 cu. ft. | 13 sq. ft. shelving area

Technical Specifications

• GCHC-19R: 115V/60Hz/1Ph | 3 Amps | 1/5 HP | 1670 BTU | Refrigerant: 2.82 oz | Shipping Weight: 220 lbs | NEMA 5-15P plug
• GCHC-35R: 115V/60Hz/1Ph | 4.5 Amps | 1/4 HP | 2380 BTU | Refrigerant: 3.7 oz | Shipping Weight: 460 lbs | NEMA 5-15P plug
• GCHC-19F: 115V/60Hz/1Ph | 5 Amps | 1/2 HP | 2000 BTU | Refrigerant: 3.53 oz | Shipping Weight: 225 lbs | NEMA 5-15P plug
• Temperature Range (Refrigerators): 34°F – 38°F
• Temperature Range (Freezers): -7°F to -3°F
• Defrost Cycle: Automatic every 6 hours
